What is Blueprint Reading?
This skill is foundational across many roles in a machine shop. Machinists at all levels rely on blueprints to set up and run machines accurately. CNC Programmers use them to plan toolpaths and ensure parts meet design intent. Quality Assurance Technicians and CMM Programmers use blueprints to verify dimensions and tolerances during inspection. Engineers and Estimators use them to assess manufacturability and cost.
Blueprint reading is the ability to interpret technical drawings that communicate how a part, assembly, or system should be manufactured or constructed. These drawings include dimensions, tolerances, materials, finishes, and other specifications essential for accurate production. In machining, blueprints serve as the primary source of truth for how a component must be shaped, measured, and assembled.
Technical drawings typically include multiple views (top, side, isometric), section cuts, symbols, and notes. Understanding these elements requires familiarity with engineering drawing standards and conventions, such as ANSI or ISO formats.

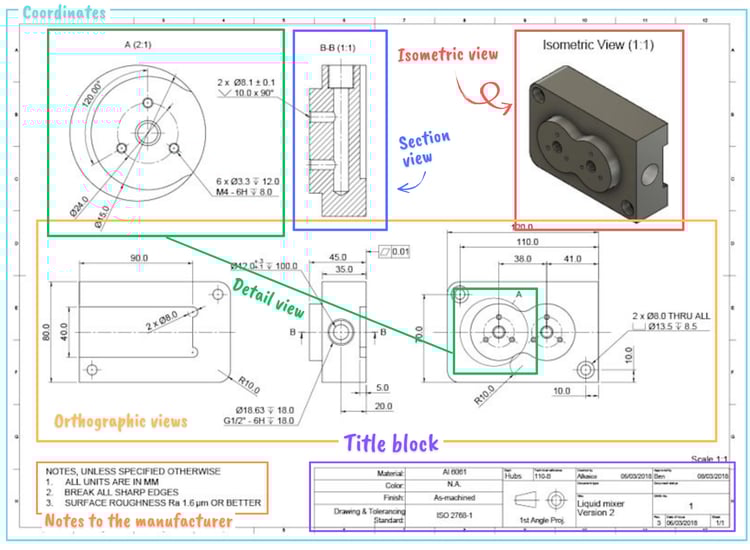

The image below illustrates the anatomy of a technical drawing.
Beginners typically start by learning to identify basic views and dimensions. They become familiar with line types, title blocks, and simple tolerances. As they progress, they learn to interpret more complex features such as datum features, surface finishes, and assembly instructions.

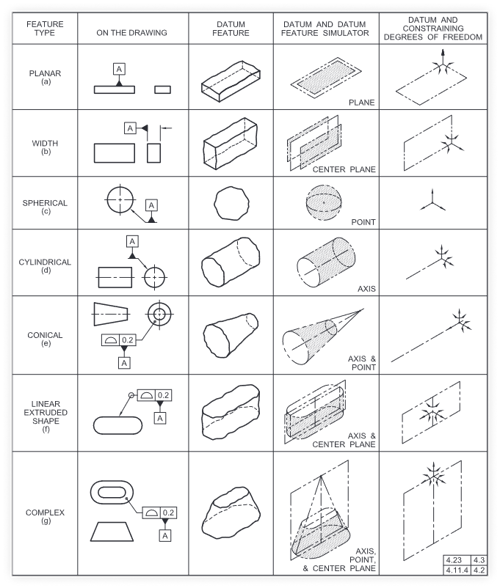

This chart illustrates the types of datum features that can be found on a technical drawing.
Advanced blueprint readers can visualize parts in 3D from 2D drawings, spot inconsistencies, and anticipate manufacturing challenges. They may also contribute to drawing revisions or collaborate with engineers to clarify manufacturing specifications.
Start Learning Blueprint Reading
The best way to begin is with structured training, either through online courses, community college programs, or industry certifications. Look for introductory courses in mechanical drawing or technical drafting. Many machining textbooks also include chapters on blueprint reading.
Here are some learning resources, both paid and unpaid, for blueprint reading:
- Knowledge Base: Anatomy of a Technical Drawing
- Knowledge Base: Optimize your Technical Drawing
- Blueprint Reading 131 through Tooling-U

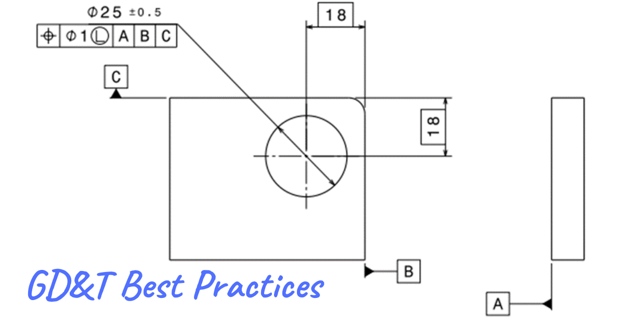

- GD&T Symbols Reference Guide
Hands-on experience is vital, though. Reviewing actual prints in a shop setting, asking questions, and comparing drawings to finished parts build a stronger understanding. As your skills grow, study GD&T and advanced drawing standards to further develop your expertise.
Amanda White
