Understanding Mechanical Properties in Metals: Ductility

Ductility describes the extent to which a material can be elongated, stretched, or drawn into fine wires under tensile load without experiencing fracture.

Ductility is a mechanical property that refers to a metal’s capacity to undergo tensile deformation—being stretched, pulled, or formed into thin wires—without fracturing. This property is primarily influenced by a material’s atomic bonding and crystal structure.Metals exhibiting high ductility are characterized by metallic bonds that enable atoms to shift positions without compromising the integrity of the crystal lattice. This quality is critical when manufacturing wires and cables, as it allows materials to be drawn into fine shapes without failure. In contrast, materials with low ductility are prone to brittleness and tend to fracture rather than deform when subjected to stress.

A component’s ductility impacts its suitability for demanding environments and long-term service. Industries like construction, automotive, and aerospace have a strong demand for ductile materials to ensure both manufacturing efficiency and operational safety. As a result, ductility plays a pivotal role in shaping manufacturing strategies and in determining the strength, durability, and reliability of finished components and structures.

This article provides an overview of ductility, how to calculate it, factors that affect ductility, ductile failure, and descriptions of the most ductile metals.

What is Ductility?

Ductility describes the extent to which a material can be elongated, stretched, or drawn into fine wires under tensile load without experiencing fracture. It quantifies a material’s ability to sustain plastic deformation before breaking—a critical consideration in the production of wires, rods, cables, and thin metal sheets for a variety of industrial and engineering applications.

High Ductility

Metals with high ductility are more likely to undergo plastic deformation rather than fracture when subjected to stress. When a material possesses both substantial strength and ductility, it typically exhibits greater toughness, enabling it to absorb more energy before failure.

Low Ductility

Metals with low ductility are inherently brittle and tend to fracture with very little plastic deformation when exposed to tensile stress, making them susceptible to abrupt and catastrophic fracture under load.

Ductility differs significantly among metals and is influenced by several variables, including material purity and crystalline structure. Metals possessing tightly packed atomic arrangements—such as gold and silver—demonstrate notably higher ductility.

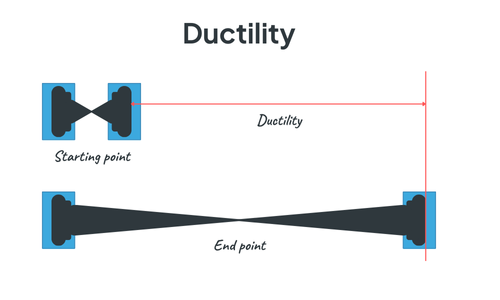

A graphic that explains ductility in metal

How to Calculate Ductility

Calculating ductility is essential for assessing how much a metal can deform before reaching failure, making it a decisive parameter in material selection and engineering design.

Ductility is typically calculated by measuring either the percentage elongation of a specimen at fracture or the percentage reduction in its cross-sectional area after tensile loading.

A common technique for assessing ductility is the use of a tensile testing machine, which applies a controlled and continuous load to a material specimen and precisely records its elongation and recovery. This equipment enables the measurement of both elastic and plastic deformation, making it suitable for evaluating ductile characteristics as well as properties like Young’s modulus, which is determined within the elastic region of a material.

In ductility testing, a material is intentionally loaded beyond its yield strength to induce plastic deformation. The most straightforward way to quantify ductility in these tests is by calculating the percentage elongation of the sample at the point of fracture.

Another standard metric is the percentage reduction in area (%RA), which is determined by comparing the specimen’s cross-sectional area before loading (A₀) to the area after fracture (Af).

Note that comparing ductility values obtained from different test methods can lead to inconsistent or misleading conclusions. For accurate assessment, relative ductility should be evaluated using results from the same type of test.

Analyzing and comparing these ductility measurements enables engineers to determine whether a material is well-suited for its intended application. This process also supports ongoing optimization of material properties to fulfill specific performance and reliability requirements.



There are established ductility testing standards that define how to measure a metal's capacity to plastically deform under tensile stress before fracturing, including: ASTM E8/E8M-22 (Standard Test Methods for Tension Testing of Metallic Materials) and the ISO 6892-1:2019 international standard for tensile testing metallic materials at room temperature.

Factors that Impact Ductility

Ductility is primarily impacted by composition, grain size, and crystal structure.

Composition

Impurities or alloying elements can change the microstructure, influencing grain size and introducing defects that impact ductility and fracture behavior.

Grain Size

Grain size directly influences ductility: smaller grains increase strength and hardness but reduce ductility, while larger grains enhance ductility but lower strength and hardness.

Crystal Structure

Crystal structure is another key factor impacting ductility. Metals form different crystal arrangements based on their composition, which directly affects how ductile they are. For example, materials with a face-centered cubic (FCC) crystal structure, such as aluminum and copper, tend to be more ductile than those with a body-centered cubic (BCC) or hexagonal close-packed (HCP) crystal structure.

A metal’s ductility can also be impacted by treatments, material class, and other factors, including but not limited to those described below:

  • Temperature increase: For most materials, higher temperatures boost ductility by enabling atoms to move more freely and reducing resistance to plastic deformation.
  • Stress state: Materials subjected to compression often display higher ductility than those under tension, as compression can close cracks and voids (we’ll look at this more closely in the next section), reducing fracture risk.
  • Load rate: Ductility decreases at high load rates because atoms have less time to realign, increasing brittleness. At lower load rates, materials can undergo more plastic deformation, resulting in higher ductility.

What is Ductile Failure?

Ductile failure occurs in several stages, especially under tensile loading.

Once a material is stressed beyond its yield point, it undergoes plastic deformation and begins to neck, reducing its cross-sectional area. Internal defects—such as inclusions, voids, or misaligned crystal structures—serve as initiation sites for failure.

As stress continues, these voids grow and merge, eventually forming a crack that propagates until the material fractures completely.

Any material can fail under certain conditions. Ductile failure occurs when significant plastic deformation happens before fracture. Below are common sources of ductile failure:

Material Properties

To prevent ductile failure, parts should be designed so that stresses remain below the material’s yield strength. Some materials, like medium-carbon steel, have a distinct yield point visible on a stress-strain curve. Highly ductile materials such as aluminum, which lack a clear yield point, use the 0.2% offset method to define yield strength—corresponding to the stress at 0.2% permanent strain—for engineering calculations.

Existing Weaknesses

Defects like cracks, voids, or inclusions act as local stress concentrators within a material. When subjected to load, these areas are more likely to yield first, initiating the growth of microscopic voids that eventually coalesce and form a crack. Most ductile failures progress through this mechanism, leading to eventual fracture.

Stress

To ensure safety, parts are generally engineered so that operational stresses stay well below the material’s yield strength, often incorporating safety factors. If tensile stress surpasses the yield strength, the material will undergo permanent (plastic) deformation, marking the onset of ductile failure. Deformation continues until the applied stress exceeds the fracture strength and the part ultimately breaks.

Loading Rates

Ductile failure most commonly occurs during tensile loading, where the material is stretched by an applied force. The rate at which the load is applied—known as the loading rate—also affects failure behavior. In some scenarios, higher loading rates can increase apparent fracture toughness. While most components are engineered to withstand typical service loads, unexpected or extreme tensile stresses can still cause ductile failure.

Environmental Effects

Environmental factors greatly affect tensile behavior. High temperatures lower yield strength, making ductile failure more likely, while low temperatures can cause normally ductile materials to fracture brittlely (at the ductile-to-brittle transition temperature, or DBTT). Creep may occur at elevated temperatures and sustained loads.

Preventing ductile failure requires designing components so that applied stresses never exceed the material’s yield point under service conditions. This may involve reducing loads, increasing cross-sectional area, or selecting a material with higher yield strength.

Engineering standards require designing parts with a safety factor above the maximum anticipated load. Safety factors account for uncertainties in material properties, environment, and unexpected loads. Many industries have specific regulations governing acceptable safety factors.

The Most Ductile Metals

Metals like copper, gold, and aluminum are considered highly ductile and can undergo substantial plastic deformation before fracturing. Note that the most ductile metals all share the same face-centered cubic (FCC) crystal structure, which allows atoms to easily shift position under stress and enables extensive deformation before fracture.

Gold

Gold is renowned as one of the most ductile metals, especially in its pure form. It can be drawn into extremely fine wires or hammered into ultra-thin sheets—gold leaf—without breaking.

Platinum

Platinum is among the most ductile metals and can undergo significant plastic deformation without fracturing—comparable to gold. A single gram can be drawn into a wire several kilometers long.

Copper

Copper is extremely ductile, and has outstanding electrical and thermal conductivity. This makes it ideal for manufacturing fine wires and coiled conductors in electrical and electronic applications.

Nickel

In addition to being very ductile, nickel maintains strength at elevated temperatures and resists oxidation and corrosion, making it well-suited for turbine blades, heat exchangers, superalloys, and stainless steels used in demanding environments.

Here is a ranking of commonly machined metals based on their ductility.

Metal Ductility
Copper Very high
Aluminum High
Mild steels High
Stainless steels Moderate to high
Titanium Moderate
Brass Moderate
Tool steel Low
Cast iron Very low



Understanding and optimizing ductility is fundamental for engineers and manufacturers working in high-precision and high-reliability sectors.

Whether designing micro-scale wires for electronics, structural components for aerospace, or resilient materials for corrosive environments, selecting metals with the appropriate ductility ensures products can withstand deformation, avoid sudden failure, and meet strict performance criteria.
